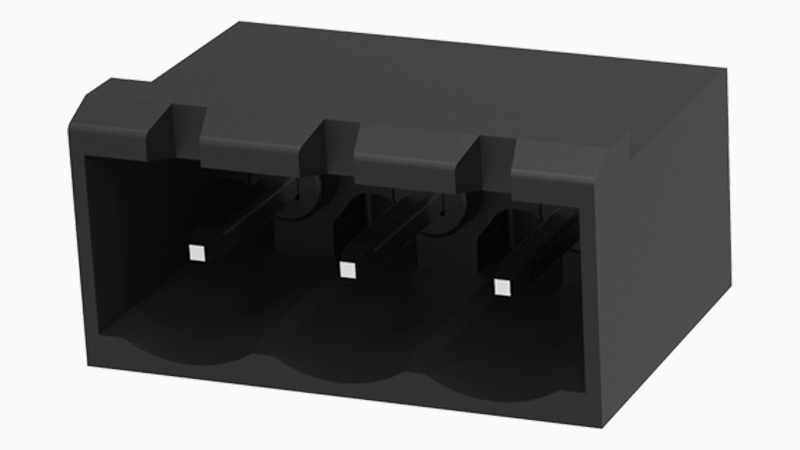

DEGSON 2EDGRC-THR-5.08-03P

Products weight (without packaging)

Packing unit

Marking strip

/

Bridge

/

Coding strip

/

Operating tool

/

Screwdriver

/

Ambient temperature (operation)

-40℃~130℃(depending on derating curve)

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅲa

Insulation Materials

High temperature resistant materials

Contact zone metal surface

tin-plated

Contact point metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

3

Pin arrangement

Single row in a straight line

Type of installation

PCB welding

Connection direction

0°

Rated surge voltage(III/2)

4KV

Rated voltage(III/2)

320V

Rated current (D)

10A

Rated current (B)

15A

Rated voltage (D)

300V

Rated voltage (B)

300V

Number of rows

1

螺距

5.08mm

Rated current

20A

Rated voltage

320V

过程

Reflow soldering/wave soldering/manual soldering

Flammability rating

UL94V-0
