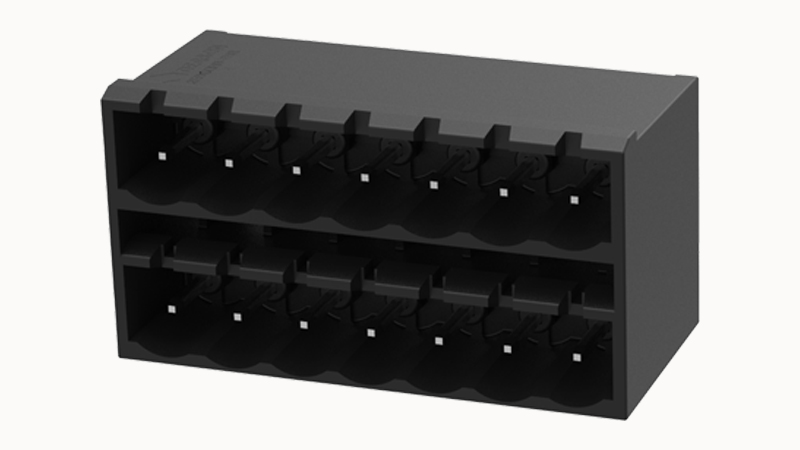

DEGSON 2EDGRHB-THR-5.0-14P

Rated voltage(III/3)

250V

Rated voltage(III/2)

320V

Rated voltage(II/2)

630V

Rated surge voltage(III/3)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(II/2)

4KV

Pin arrangement

Double-row in a straight line

Number of potentials

14

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact zone metal surface

tin-plated

Insulation Materials

High temperature resistant materials

Shell color

Black

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~120℃(depending on derating curve)

Packing unit

280

Products weight (without packaging)

8.58

Rated current (D)

10A

Rated current (B)

15A

Rated voltage (D)

300V

Rated voltage (B)

300V

Type of packaging

bag packaging

Number of rows

2

螺距

5mm

Rated current

12A

Rated voltage

320V

过程

Reflow soldering/wave soldering/manual soldering

Flammability rating

UL94V-0
