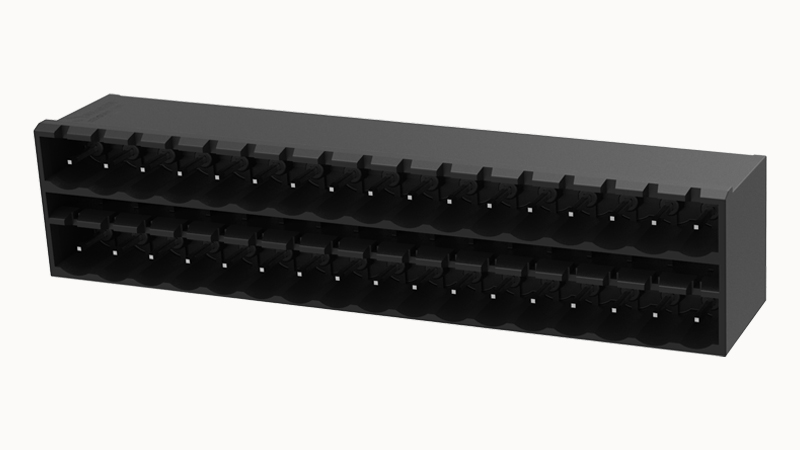

DEGSON 2EDGRHB-THR-5.08-34P

Type of packaging

bag packaging

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

15A

Rated current (D)

10A

Rated voltage(III/3)

250V

Products weight (without packaging)

20.03

Packing unit

120

Ambient temperature (operation)

-40℃~120℃(depending on derating curve)

Test Specification

IEC61984/ UL1059

Shell color

Black

Insulation Materials

High temperature resistant materials

Contact zone metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

34

Pin arrangement

Double-row in a straight line

Rated surge voltage(II/2)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(III/3)

4KV

Rated voltage(II/2)

630V

Rated voltage(III/2)

320V

Number of rows

2

螺距

5.08mm

Rated current

12A

Rated voltage

320V

过程

Reflow soldering/wave soldering/manual soldering

Flammability rating

UL94V-0
