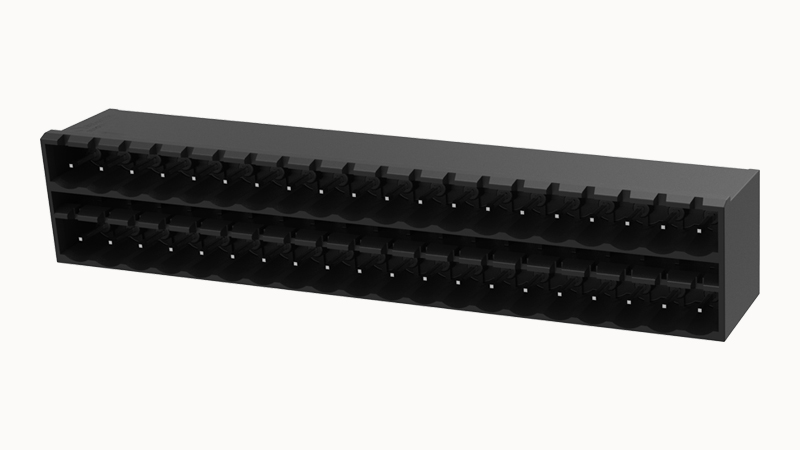

DEGSON 2EDGRHB-THR-5.08-40P

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact zone metal surface

tin-plated

Insulation Materials

High temperature resistant materials

Shell color

Black

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~120℃(depending on derating curve)

Packing unit

90

Products weight (without packaging)

23.4

Pluggable or not

有

Number of potentials

40

Pin arrangement

Double-row in a straight line

Rated surge voltage(II/2)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(III/3)

4KV

Rated voltage(II/2)

630V

Rated voltage(III/2)

320V

Rated voltage(III/3)

250V

Rated current (D)

10A

Rated current (B)

15A

Rated voltage (D)

300V

Rated voltage (B)

300V

Type of packaging

bag packaging

Number of rows

2

螺距

5.08mm

Rated current

12A

Rated voltage

320V

过程

Reflow soldering/wave soldering/manual soldering

Flammability rating

UL94V-0
