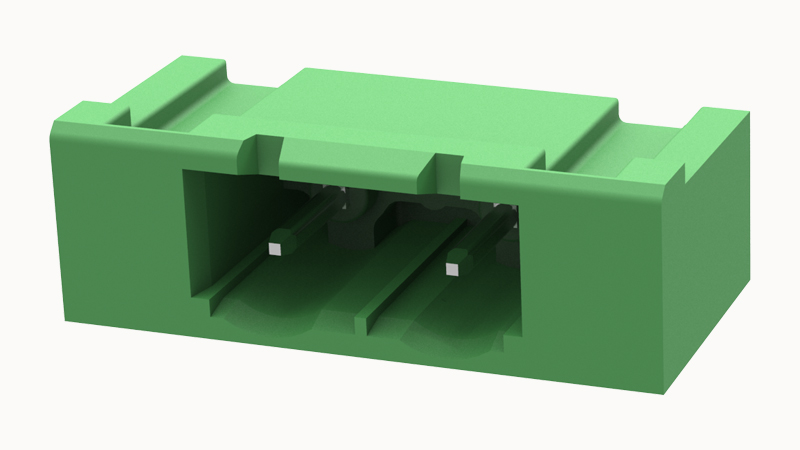

DEGSON 2EDGRMG-7.62-02P

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

10A

Rated current (D)

10A

Rated voltage(III/2)

300V

Rated surge voltage(III/2)

4KV

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Number of potentials

2

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Insulation Materials

PA66

Test Specification

IEC61984/ UL1059

Relative humidity (storage/transport)

30% ~ 70%

Ambient temperature (assembly)

-5℃~100℃

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Ambient temperature (storage/transportation)

-40℃~70℃

Screwdriver

/

Operating tool

/

Coding strip

2EDG-PWP-01AH

Bridge

/

Marking strip

/

Packing unit

570

Products weight (without packaging)

2.18

Number of rows

1

螺距

7.62mm

Flammability rating

UL94V-0
