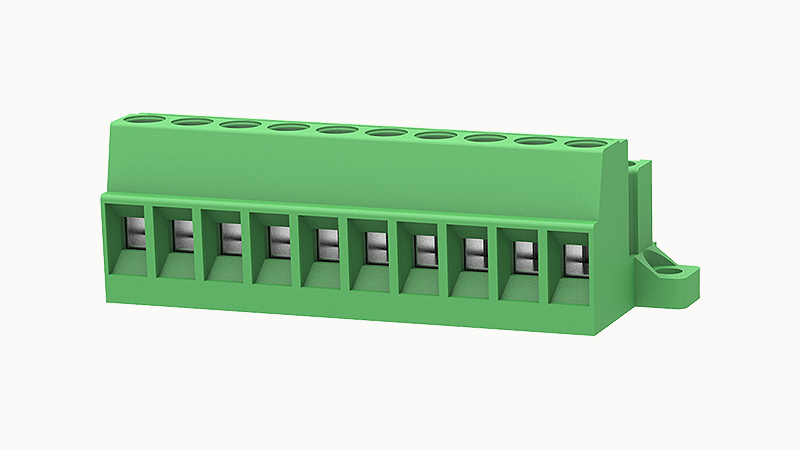

DEGSON 2EDG-STD-5.0-10P

Products weight (without packaging)

19.77

Packing unit

215

Marking strip

/

Bridge

/

Coding strip

2EDG-PWI

Operating tool

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

10

Screwdriver

Slotted screwdriver

Connection direction

0°

Rated surge voltage(III/2)

4KV

Rated voltage(III/2)

250V

Rated current (D)

10A

Rated current (B)

15A

Rated voltage (D)

300V

Rated voltage (B)

300V

Strip length

8mm

Torque

0.4N.m

AWG

28~12AWG

Conductor cross section flexible

1.0~2.5mm²

Conductor cross section solid

1.0~2.5mm²

Number of rows

1

螺距

5mm

Rated current

24A

screw thread

M2.5

Connection method

Screw connection

Rated voltage

250V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
