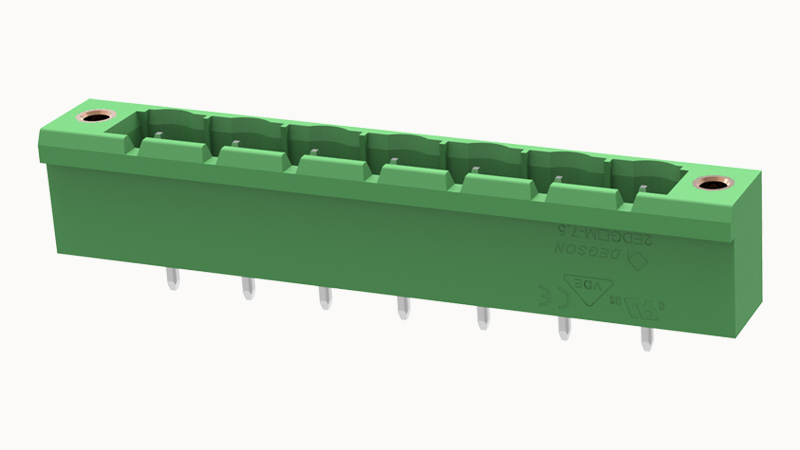

DEGSON 2EDGVM-7.5-07P

Rated voltage (Use Group B)

300V

Rated current (Use Group B)

15A

Rated voltage (Use Group D)

300V

Rated current (Use Group D)

10A

Rated voltage(III/2)

400V

Rated surge voltage(III/2)

4KV

Connection direction

90°

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Number of potentials

8

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Relative humidity (storage/transport)

30% ~ 70%

Ambient temperature (assembly)

-5℃~100℃

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Ambient temperature (storage/transportation)

-40℃~70℃

Screwdriver

/

Operating tool

/

Coding strip

/

Bridge

/

Marking strip

/

Packing unit

550

Products weight (without packaging)

4.523

Number of rows

1

螺距

7.5mm

Rated current

20A

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
