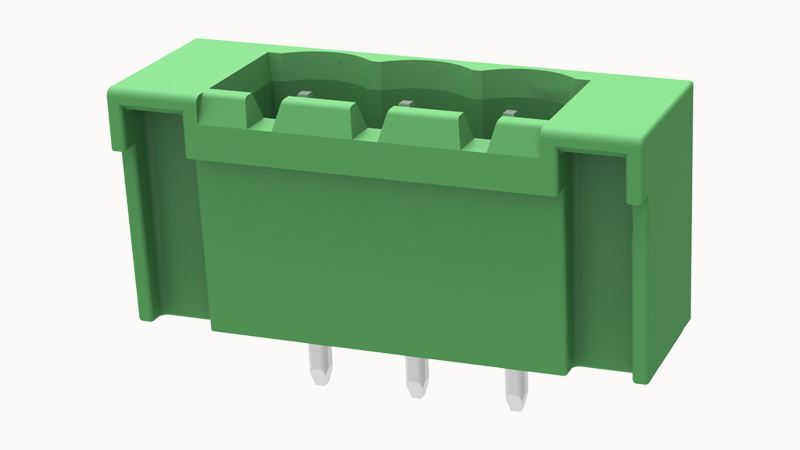

DEGSON 2EDGVMG-5.08-03P

Products weight (without packaging)

1.90625

Packing unit

800

Bridge

/

Operating tool

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

IEC61984/ UL1059

Shell color

green

Glow Wire Flammability Index GWFI

850

Relative tracking index CTI

600V

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

3

Pin arrangement

Single row in a straight line

Type of installation

PCB welding

Rated surge voltage(III/2)

4KV

Rated voltage(III/2)

320V

Rated current (D)

10A

Rated current (B)

15A

Rated voltage (D)

300V

Rated voltage (B)

300V

Type of packaging

bag packaging

Number of rows

1

螺距

5.08mm

Rated current

12A

Rated voltage

320V

Flammability rating

UL94V-0
