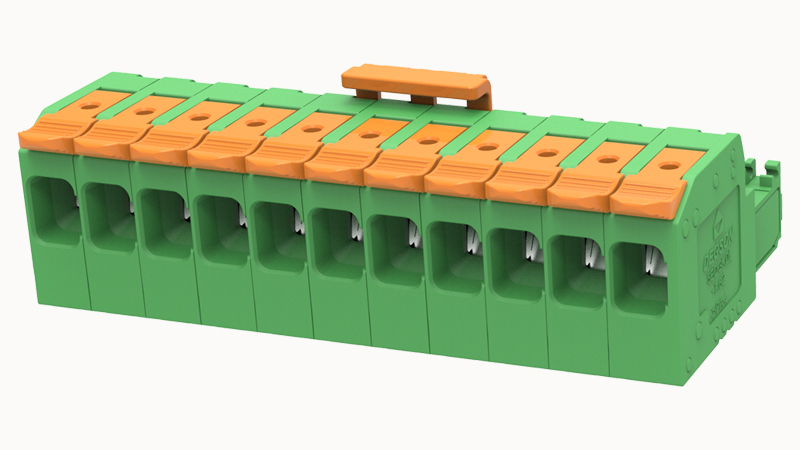

DEGSON 5EDGKDL-7.62-11P

Rated voltage (B)

600V

Rated voltage (C)

600V

Rated voltage (D)

600V

Rated current (D)

5A

Conductor cross section solid

0.2~10mm²;0.2~6mm²

Strip length

12mm

Rated voltage(III/3)

800V

Rated voltage(III/2)

1000V

Rated voltage(II/2)

1000V

Rated surge voltage(III/3)

8KV

Rated surge voltage(III/2)

8KV

Rated surge voltage(II/2)

8KV

Connection direction

0°

Number of potentials

11

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅲb

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Screwdriver

/

Operating tool

/

Coding strip

/

Bridge

/

Marking strip

/

Packing unit

40

Products weight (without packaging)

75.625

Number of rows

1

螺距

7.62mm

Rated current

41A

Connection method

Push-in spring connection

Rated voltage

1000V

Flammability rating

UL94V-0
