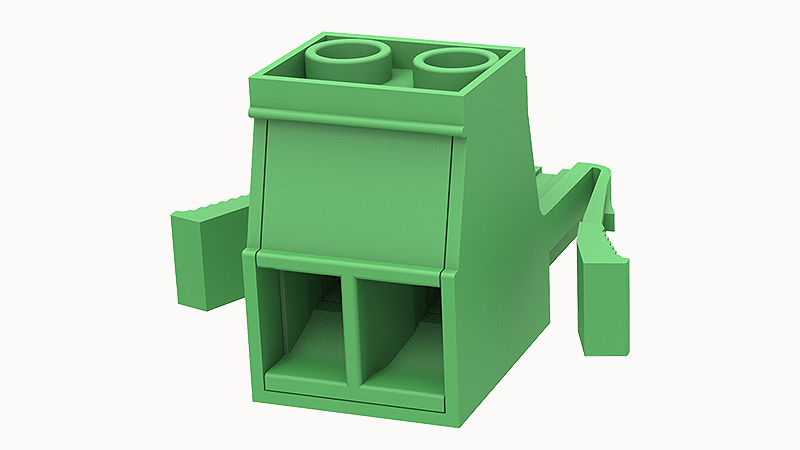

DEGSON 5EDGKG-10.16-02P
- 收藏
- 对比
5EDGKG-10.16-02P
637-5EDGKG-10.16-02P
端子板 - 针座，插头和插座
--
大陆
立即发货
Pluggable terminal blocks,Rated current:57A.Rated voltage （III/3）:600V,pitch:10.16mm,Color:green,Contact surface :Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
5EDGKG-10.16-02P详情
DEGSON 5EDGKG-10.16-02P重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Conductor cross section solid
0.5~10mm²
Conductor cross section flexible
0.5~10mm²
AWG
20~6AWG
Torque
1.2N.m
Strip length
11mm
Rated voltage (B)
600V
Rated voltage (C)
600V
Rated voltage (D)
600V
Rated current (B)
52A
Rated current (D)
5A
Rated current (C)
52A
Rated current(III/3)
600V
Rated surge voltage(III/3)
6KV
Connection direction
0°
Screwdriver
Slotted screwdriver
Number of potentials
2
Pluggable or not
有
Environmental items
Compliant with REACH/RoHS
Contact Materials
copper
Contact point metal surface
Silver plated
Insulation Materials
PA66
Insulating material group
Ⅰ
Test Specification
IEC61984/ UL1059
Ambient temperature (operation)
-40℃~105℃
Number of rows
1
螺距
10.16mm
UL可燃性规范
UL94V-0
Rated current
57A
screw thread
M4
Rated voltage
600V
