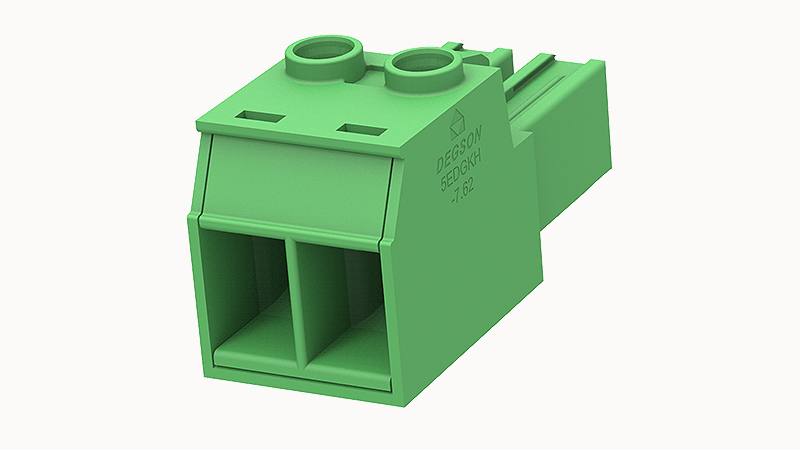

DEGSON 5EDGKH-7.62-02P

Conductor cross section solid

0.5~6mm²

Conductor cross section flexible

0.5~6.0mm²

Torque

0.8N.m

Strip length

11mm

Rated voltage (B)

600V

Rated voltage (C)

600V

Rated voltage (D)

600V

Rated current (B)

41A

Rated current (D)

5A

Rated current (C)

41A

Rated current(III/3)

1000V

Rated current(III/2)

1000V

Rated current(II/2)

1000V

Rated surge voltage(III/3)

8KV

Rated surge voltage(III/2)

8KV

Rated surge voltage(II/2)

6KV

Connection direction

0°

Screwdriver

slotted-phillips screwdriver

Number of potentials

2

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃

Number of rows

1

螺距

7.62mm

Rated current

41A

screw thread

M3

Rated voltage

1000V

Flammability rating

UL94V-0
