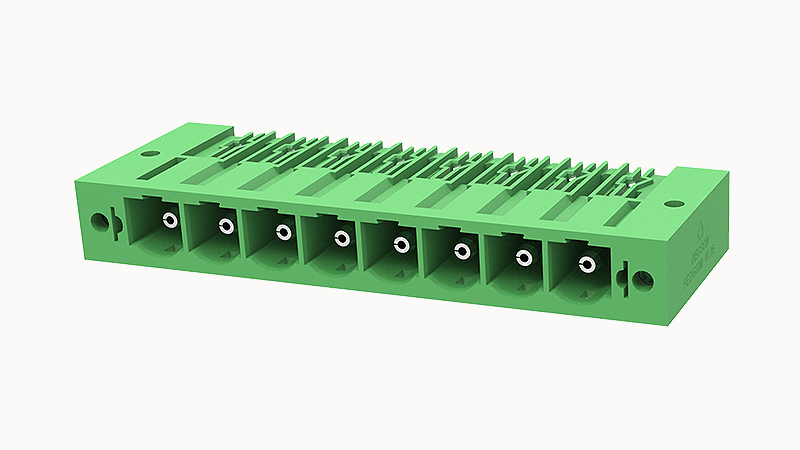

DEGSON 5EDGRM-10.16-08P

Pin arrangement

Three rows in a straight line

Number of potentials

8

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact zone metal surface

Silver plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Screwdriver

/

Operating tool

/

Coding strip

/

Bridge

/

Marking strip

/

Packing unit

70

Products weight (without packaging)

34.61

Type of installation

PCB welding

Connection direction

0°

Rated surge voltage(III/3)

6KV

Rated voltage(III/3)

600V

Rated current (C)

52A

Rated current (D)

5A

Rated current (B)

52A

Rated voltage (D)

600V

Rated voltage (C)

300V

Rated voltage (B)

300V

Number of rows

1

螺距

10.16mm

Rated current

57A

Rated voltage

600V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
