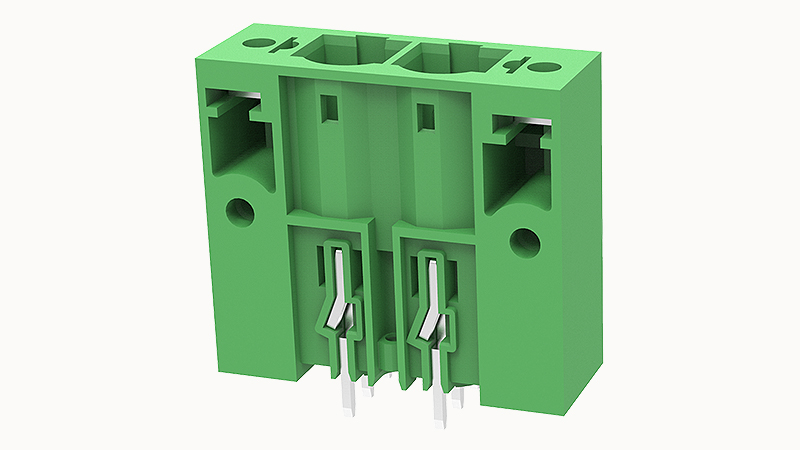

DEGSON 5EDGVM-10.16-02P

Rated voltage (B)

300V

Rated voltage (C)

300V

Rated voltage (D)

600V

Rated current (B)

52A

Rated current (D)

5A

Rated current (C)

52A

Rated current(III/3)

600V

Rated surge voltage(III/3)

6KV

Connection direction

90°

Type of installation

PCB welding

Ambient temperature (operation)

-40℃~105℃

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact zone metal surface

Silver plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

2

Pin arrangement

Three rows in a straight line

Number of rows

1

螺距

10.16mm

Rated current

57A

Rated voltage

600V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
