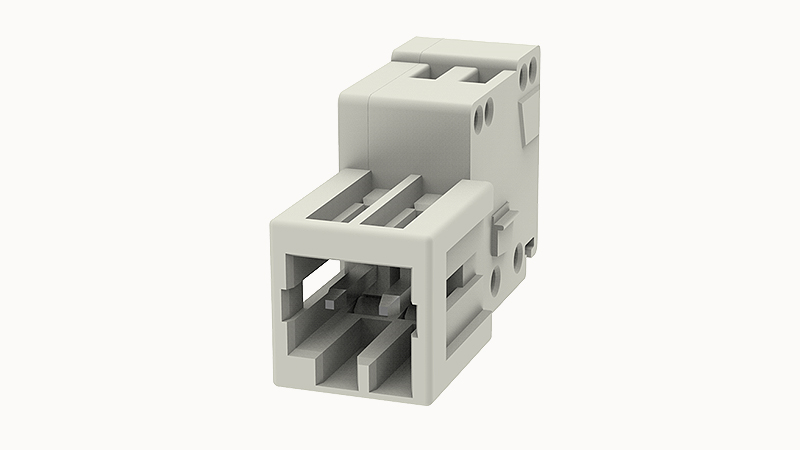

DEGSON 8EDGKR-2.5-02P

Connection direction

0°

Rated surge voltage(III/3)

2.5KV

Rated current(III/3)

130V

Rated current (B)

4A

Rated voltage (B)

150V

Strip length

10mm

AWG

28~20AWG

Conductor cross section flexible

0.2~0.5mm²

Conductor cross section solid

0.2~0.5mm²

Pin arrangement

Single row in a straight line

Number of potentials

2

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃

Number of rows

1

螺距

2.5mm

Rated current

6A

Connection method

spring-cage connection

Rated voltage

130V

Flammability rating

UL94V-0
