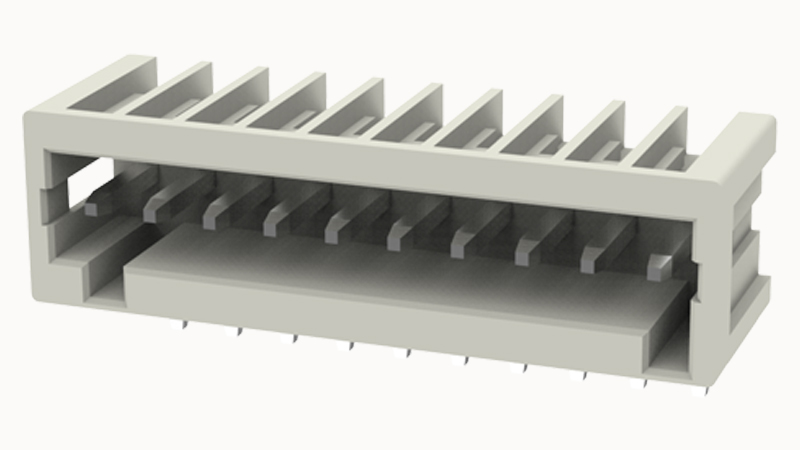

DEGSON 8EDGRC-2.5-10P

Rated voltage (B)

150V

Rated voltage (C)

150V

Rated voltage (D)

150V

Rated current (B)

4A

Products weight (without packaging)

1.55

Packing unit

100

Marking strip

/

Bridge

/

Coding strip

/

Operating tool

/

Screwdriver

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

10

Pin arrangement

Single row in a straight line

Type of installation

PCB welding

Connection direction

0°

Rated surge voltage(III/3)

2.5KV

Rated voltage(III/3)

130V

Rated current (C)

4A

Rated current (D)

4A

Number of rows

1

螺距

2.5mm

Rated current

6A

Rated voltage

130V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
