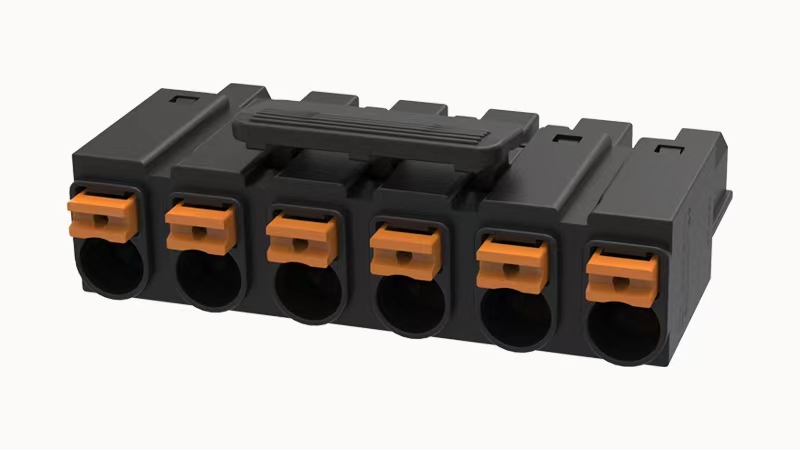

DEGSON 9EDGKD-7.62-06P

Type of packaging

bag packaging

Conductor cross section solid

0.5~4mm²

Conductor cross section flexible

0.5~2.5mm²

AWG

20~2AWG

Strip length

10mm

Rated voltage (B)

600V

Rated voltage (C)

600V

Rated current (B)

20A

Rated current (C)

20A

Rated voltage(III/3)

400V

Rated voltage(III/2)

630V

Rated voltage(II/2)

1000V

Rated surge voltage(III/3)

6KV

Rated surge voltage(III/2)

6KV

Rated surge voltage(II/2)

6KV

Number of potentials

6

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Relative tracking index CTI

400V

Glow Wire Flammability Index GWFI

850

Shell color

Black

Insulating material group

Ⅲa

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~120℃(depending on derating curve)

Screwdriver

/

Operating tool

/

Coding strip

/

Bridge

/

Marking strip

/

Packing unit

Products weight (without packaging)

Number of rows

1

螺距

7.62mm

Rated current

20A

Connection method

Push-in spring connection

Rated voltage

630V

Flammability rating

UL94V-0
