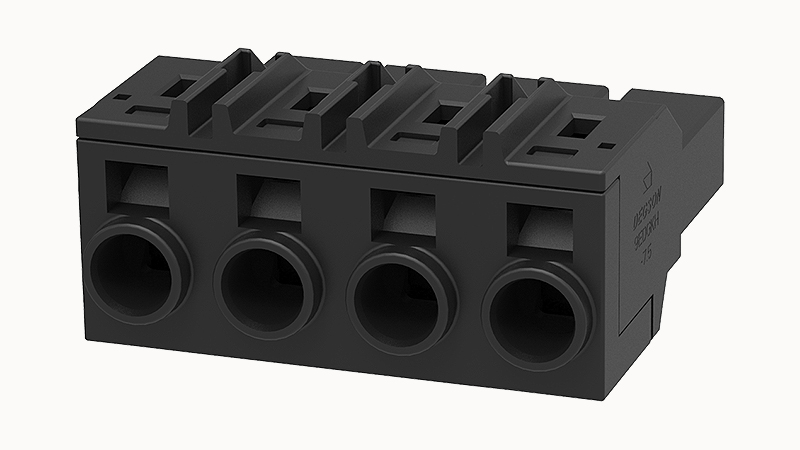

DEGSON 9EDGKH-7.5-04P

Conductor cross section solid

0.2~2.5mm²

Conductor cross section flexible

0.2~2.5mm²

Strip length

9mm

Rated voltage (B)

600V

Rated voltage (C)

600V

Rated voltage (D)

600V

Rated current (B)

16A

Rated current (D)

5A

Rated current (C)

16A

Rated current(III/2)

1000V

Rated surge voltage(III/2)

8KV

Connection direction

0°

Number of potentials

4

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Contact zone metal surface

Gold plate

Insulation Materials

PA66

Insulating material group

II

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃

Number of rows

1

螺距

7.5mm

Rated current

20A

Connection method

spring-cage connection

Rated voltage

1000V

Flammability rating

UL94V-0
