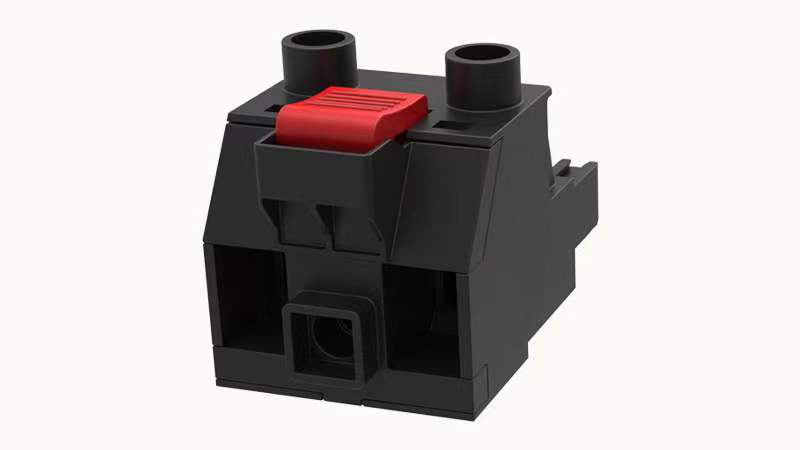

DEGSON 9EDGKS-10.16-L2-02P

Type of packaging

box-packed

IP class

IP20

Conductor cross section solid

0.2~16mm²

Conductor cross section flexible

0.2~16mm²

feeler gauge a x b／diameter

4.3mm x4.0mm/5.2mm

AWG

22~6AWG

Torque

1.5N.m

Strip length

12mm

Rated voltage (B)

600V

Rated voltage (C)

600V

Rated voltage (D)

600V

Rated current (B)

57A

Rated current (D)

5A

Rated current (C)

57A

Rated current(III/3)

1000V

Rated current(III/2)

1000V

Rated current(II/2)

1000V

Rated surge voltage(III/3)

8KV

Rated surge voltage(III/2)

8KV

Rated surge voltage(II/2)

6KV

Connection direction

0°

Screwdriver

slotted-phillips screwdriver

Number of potentials

2

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

Silver plated

Contact zone metal surface

Silver plated

Insulation Materials

PA66

Relative tracking index CTI

600V

Shell color

Black

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~120℃

Number of rows

1

螺距

10.16mm

Rated current

78.3A

screw thread

M4

Connection method

Screw connection

Rated voltage

1000V

Flammability rating

UL94V-0
