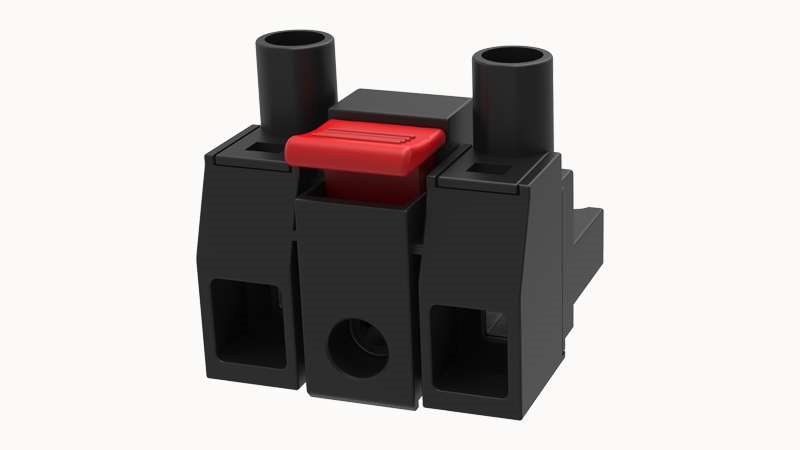

DEGSON 9EDGKS-7.62-L2-02P

Type of packaging

box-packed

IP class

IP20

Conductor cross section solid

0.2~4mm²

Conductor cross section flexible

0.2~4.0mm²

feeler gauge a x b／diameter

2.8mm x2.4mm/2.5mm

AWG

28~12AWG

Torque

0.5N.m

Strip length

7mm

Rated voltage (B)

600V

Rated voltage (C)

600V

Rated voltage (D)

600V

Rated current (B)

20A

Rated current (D)

5A

Rated current (C)

20A

Rated current(III/3)

400V

Rated current(III/2)

500V

Rated current(II/2)

630V

Rated surge voltage(III/3)

6KV

Rated surge voltage(III/2)

6KV

Rated surge voltage(II/2)

4KV

Connection direction

0°

Screwdriver

slotted-phillips screwdriver

Number of potentials

2

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Relative tracking index CTI

600V

Shell color

Black

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃

Number of rows

1

螺距

7.62mm

Rated current

29A

screw thread

M3

Connection method

Screw connection

Rated voltage

500V

Flammability rating

UL94V-0
