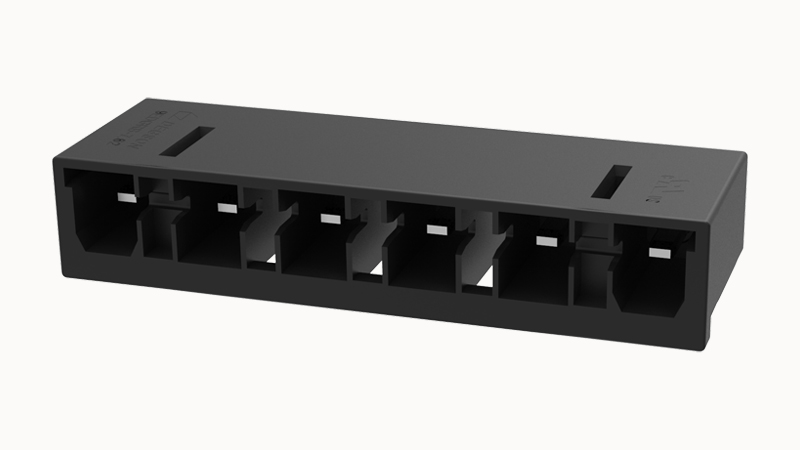

DEGSON 9EDGRB-7.62-06P

Bridge

/

Marking strip

/

Packing unit

Products weight (without packaging)

Coding strip

/

Operating tool

/

Screwdriver

/

Ambient temperature (operation)

-40℃~130℃(depending on derating curve)

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅲa

Shell color

Black

Glow Wire Flammability Index GWFI

850

Relative tracking index CTI

250V

Insulation Materials

High temperature resistant materials

Contact zone metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

6

Pin arrangement

Single row in a straight line

Type of installation

PCB welding

Rated surge voltage(II/2)

6KV

Rated surge voltage(III/2)

6KV

Rated surge voltage(III/3)

6KV

Rated voltage(II/2)

1000V

Rated voltage(III/2)

630V

Rated voltage(III/3)

400V

Rated current (C)

20A

Rated current (D)

5A

Rated voltage (D)

600V

Rated voltage (B)

300V

Type of packaging

reel

Number of rows

1

螺距

7.62mm

Rated current

20A

Rated voltage

630V

过程

Reflow soldering/wave soldering/manual soldering

Flammability rating

UL94V-0
