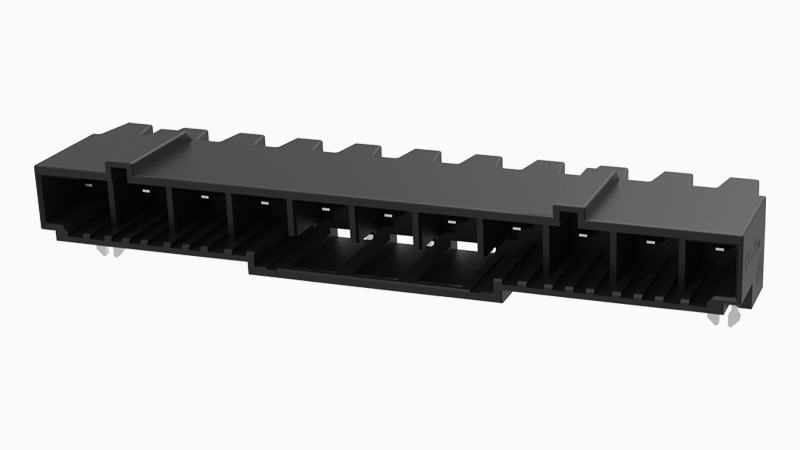

DEGSON 9EDGRC-7.5-11P

Rated voltage (B)

300V

Rated voltage (C)

300V

Rated voltage (D)

600V

Rated current (B)

16A

Rated current (D)

5A

Rated current (C)

16A

Rated voltage(III/3)

500V

Rated voltage(III/2)

630V

Rated voltage(II/2)

1000V

Rated surge voltage(III/3)

6KV

Rated surge voltage(III/2)

6KV

Rated surge voltage(II/2)

6KV

Connection direction

0°

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Number of potentials

11

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact zone metal surface

Gold plate

Insulation Materials

High temperature resistant materials

Insulating material group

Ⅲa

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~130℃(depending on derating curve)

Screwdriver

/

Operating tool

/

Coding strip

/

Bridge

/

Marking strip

/

Packing unit

155

Products weight (without packaging)

10.715

Number of rows

1

螺距

7.5mm

Rated current

20A

Rated voltage

630V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
