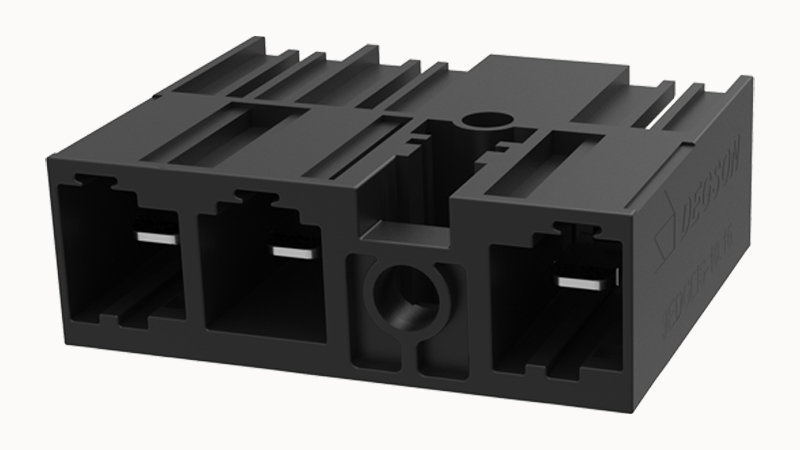

DEGSON 9EDGRS-10.16-GR-L3-03P

Type of packaging

box-packed

IP class

IP20

Rated voltage (B)

300V

Rated voltage (C)

300V

Rated voltage (D)

600V

Rated current (B)

57A

Rated current (D)

5A

Rated current (C)

57A

Rated current(III/3)

690V

Rated current(III/2)

1000V

Rated current(II/2)

1000V

Rated surge voltage(III/3)

8KV

Rated surge voltage(III/2)

8KV

Rated surge voltage(II/2)

6KV

Connection direction

0°

Type of installation

PCB welding

Pin arrangement

Three rows in a straight line

Number of potentials

3

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact zone metal surface

Silver plated

Insulation Materials

PA66

Relative tracking index CTI

600V

Shell color

Black

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~130℃

Number of rows

1

螺距

10.16mm

Rated current

78.3A

Rated voltage

1000V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
