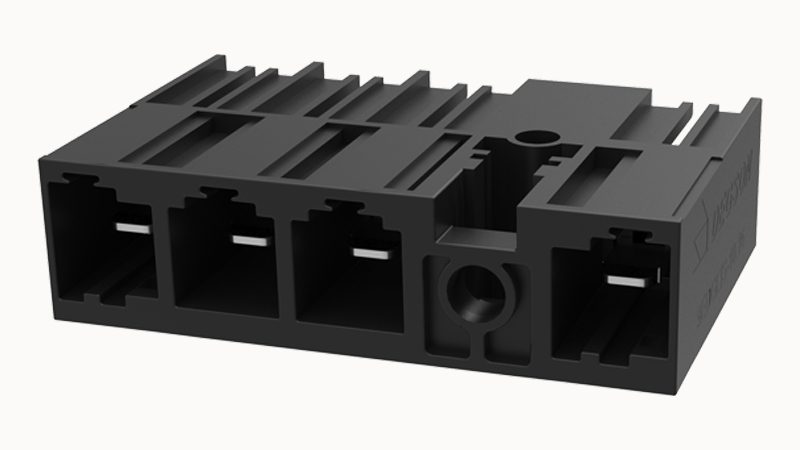

DEGSON 9EDGRS-10.16-L4-04P

Relative tracking index CTI

600V

Shell color

Black

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~130℃(depending on derating curve)

Screwdriver

/

Operating tool

/

Coding strip

/

Bridge

/

Marking strip

/

Packing unit

150

Products weight (without packaging)

20.3

Insulation Materials

PA66

Contact zone metal surface

Silver plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

4

Pin arrangement

Three rows in a straight line

Type of installation

PCB welding

Connection direction

0°

Rated surge voltage(II/2)

6KV

Rated surge voltage(III/2)

8KV

Rated surge voltage(III/3)

8KV

Rated voltage(II/2)

1000V

Rated voltage(III/2)

1000V

Rated voltage(III/3)

690V

Rated current (C)

57A

Rated current (D)

5A

Rated current (B)

57A

Rated voltage (D)

600V

Rated voltage (C)

300V

Rated voltage (B)

300V

IP class

IP20

Type of packaging

box-packed

Number of rows

1

螺距

10.16mm

Rated current

78.3A

Rated voltage

1000V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
