DEGSON DA-003-FS
- 收藏
- 对比
DA-003-FS
637-DA-003-FS
背板连接器 - ARINC 插件
--
大陆
立即发货

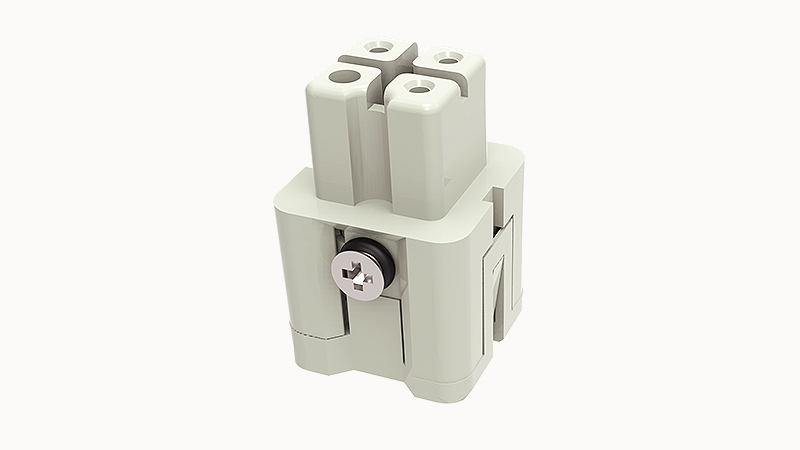

Heavy-duty insert,Number of contacts:3 PE,Dimension:3A,Rated voltage :400/230V,Rated current:10A,Female insert,Cage clamp connector
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DA-003-FS详情
DEGSON DA-003-FS重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
classification
Insert
Female/Male
Female
Dimensions
3A
PE Contacts
有
RoHS
Comply with RoHS exemptions
Rated pulse voltage
4KV
Pollution level
3
On the basis of UL /CSARated current
600V
working life-mating cycles
≥500 time
Strip length
9.0mm
Conductor cross sections(AWG)
20-14AWG
Connection meets standards
DIN EN 60664 DIN EN 61984
系列
DA
Number of positions
3
color
Grey/White（RAL 7032）
Contact resistance
≤1mΩ
Insulation resistance
≥10000MΩ
Temperature range
-40℃~+125℃
Rated current
10A
Connection method
Spring cage connection
Flammability rating
V-0
