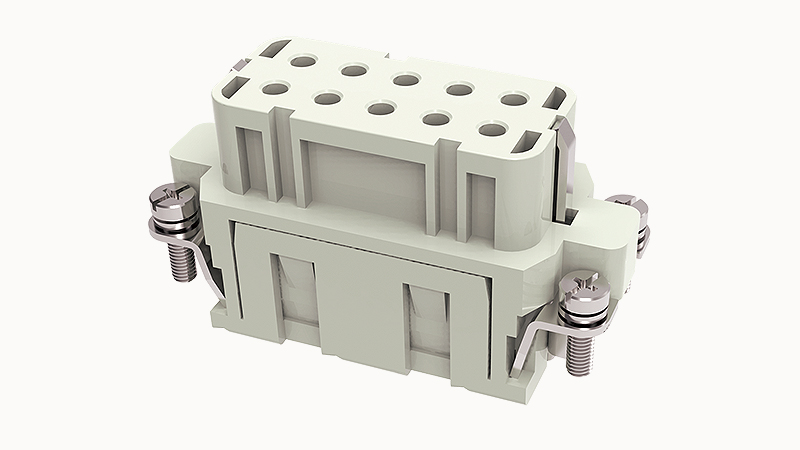

DEGSON DA-010-FC
- 收藏
- 对比
DA-010-FC
637-DA-010-FC
背板连接器 - ARINC 插件
--
大陆
立即发货
Heavy-duty insert,Number of contacts:10 PE,Dimension:10A,Rated voltage :250V,Rated current:16A,Female insert,Crimping connector
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DA-010-FC详情
DEGSON DA-010-FC重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
working life-mating cycles
≥500 time
Strip length
7.5mm
Conductor cross sections(AWG)
26-12AWG
Connection meets standards
DIN EN 60664 DIN EN 61984
On the basis of UL /CSARated current
600V
Pollution level
3
Rated pulse voltage
4KV
RoHS
Comply with RoHS exemptions
PE Contacts
有
Dimensions
10A
Female/Male
Female
classification
Insert
系列
DA
Number of positions
10
color
Grey/White（RAL 7032）
Contact resistance
≤1mΩ
Insulation resistance
≥10000MΩ
Temperature range
-40℃~+125℃
Rated current
16A
Connection method
Crimping connection
Flammability rating
V-0
