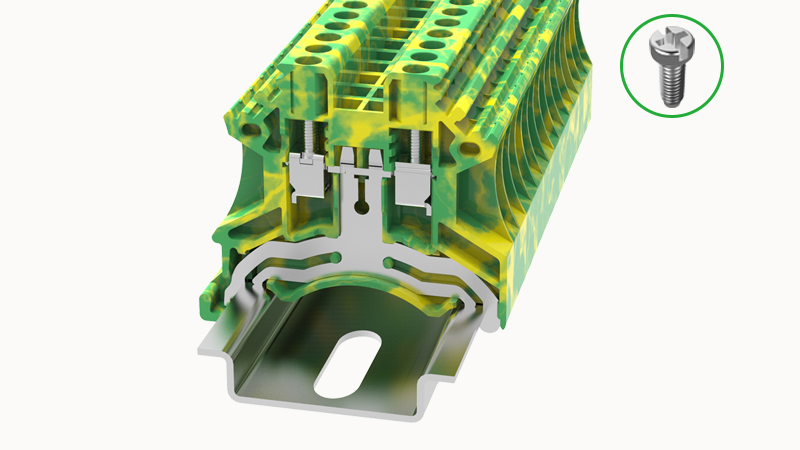

DEGSON DC2.5-PE-02A(H)

Insulation Materials

PA

Flame retardant grade, in line with UL94

V0

Insulating material group

I

End plate width

1.5mm

NS 35/7,5 Height

41.5mm

NS 35/15 Height

49mm

Conductor cross section solid AWG

28~12

Conductor cross section solid

0.2~4mm²

Conductor cross section flexible

0.2~2.5mm²

Conductor cross section flexible (ferrule without plastic sleeve)

0.2-2.5mm²

Conductor cross section flexible (ferrule with plastic sleeve)

0.5-1.5mm²

2 flexible conductors with a TWIN ferrule

0.5-1mm²

Ambient temperature (operation)

-40 °C ~ 105 °C（depending on derating curve）

Ambient temperature (storage/transportation)

-25℃~60℃

Mechanical strength

Passed the test

Fixing support

Passed the test

Anti-finger touch

Passed the test

number of connections

2

Open-end side panels

有

standard test

IEC60947-7-2

Strip length

8~9mm

Screw type

Cross & Slotted screw

Tightening torque

0.4N.m

Rated surge voltage

8KV

Relative humidity (storage/transport)

25%~75%

Rotational Pull Test

Passed the test

Voltage drop

≤3.2mV

Temperature rise test

≤45 K

RoHS

No excessive harmful substances

Number of rows

1

screw thread

M2.5

Connection method

screw connection

高度

40mm

length

44.5mm

width

5.1mm

REACh SVHC

Lead 7439-92-1
