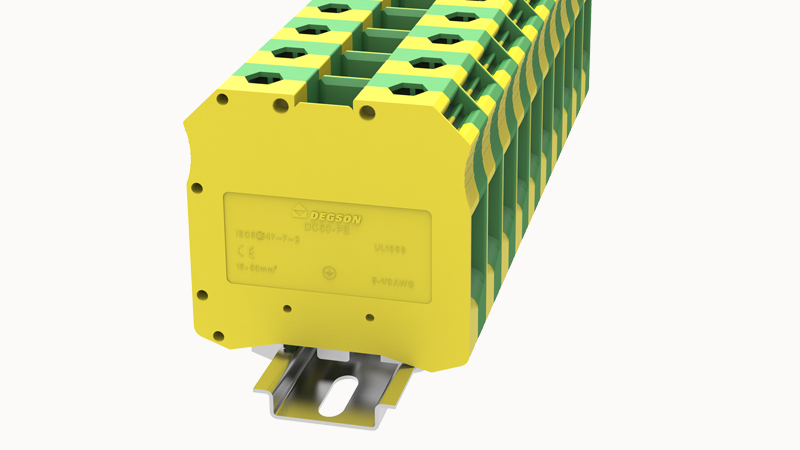

DEGSON DC50-PE

number of connections

2

Open-end side panels

no

Insulation Materials

PA

Flame retardant grade, in line with UL94

V0

Insulating material group

I

standard test

IEC60947-7-2

NS 35/7,5 Height

75.9mm

NS 35/15 Height

83.4mm

Strip length

22~23mm

Conductor cross section solid AWG

6~1/0

Conductor cross section solid

16~50mm²

Conductor cross section flexible

16~50mm²

Conductor cross section flexible (ferrule without plastic sleeve)

16-50mm²

Conductor cross section flexible (ferrule with plastic sleeve)

16-50mm²

2 flexible conductors with a TWIN ferrule

10-16mm²

Screw type

Slotted screw

Tightening torque

2.5N.m

Rated surge voltage

8KV

Ambient temperature (operation)

-40 °C ~ 105 °C（depending on derating curve）

Relative humidity (storage/transport)

25%~75%

Ambient temperature (storage/transportation)

-25℃~60℃

Mechanical strength

Passed the test

Fixing support

Passed the test

Rotational Pull Test

Passed the test

Voltage drop

≤3.2mV

Temperature rise test

≤45 K

Anti-finger touch

Passed the test

RoHS

No excessive harmful substances

Number of rows

1

screw thread

M6

Connection method

screw connection

width

20mm

高度

75.85mm

length

70.45mm

REACh SVHC

Lead 7439-92-1
