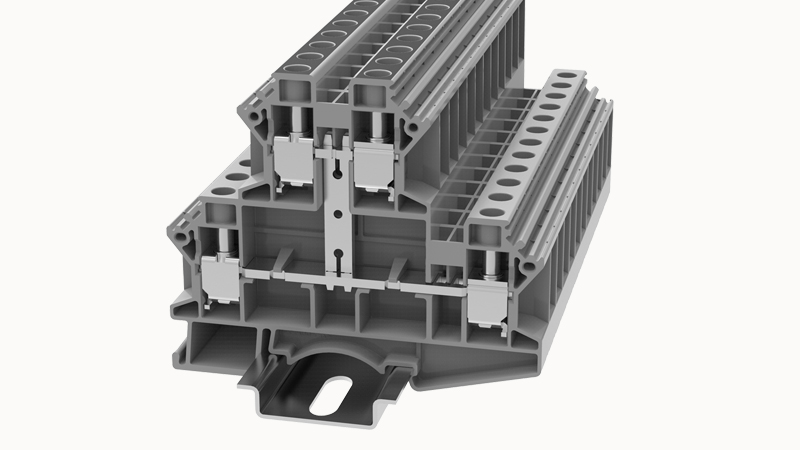

DEGSON DCKKB10-PV

number of connections

4

Open-end side panels

有

Insulation Materials

PA

Flame retardant grade, in line with UL94

V0

Insulating material group

I

standard test

IEC60947-7-1

End plate width

1.5mm

NS 35/7,5 Height

72.5mm

NS 35/15 Height

80mm

Strip length

10~12mm

Conductor cross section solid AWG

20~6

Conductor cross section solid

0.5~10mm²

Conductor cross section flexible

0.5~10mm²

Conductor cross section flexible (ferrule without plastic sleeve)

0.5-10mm²

Conductor cross section flexible (ferrule with plastic sleeve)

0.5-10mm²

Screw type

Slotted screw

Tightening torque

1.54N.m

Rated voltage (III / 3)

500V

Rated current(III/3)

57A

Rated surge voltage

6KV

Ambient temperature (operation)

-40 °C ~ 105 °C（depending on derating curve）

Relative humidity (storage/transport)

25%~75%

Ambient temperature (storage/transportation)

-25℃~60℃

Mechanical strength

Passed the test

Fixing support

Passed the test

Rotational Pull Test

Passed the test

Voltage drop

≤3.2mV

Temperature rise test

≤45 K

Anti-finger touch

Passed the test

RoHS

No excessive harmful substances

Number of rows

2

Rated current

65A

screw thread

M4

Connection method

screw connection

Rated voltage

300V

width

10mm

高度

71.2mm

length

83.9mm

REACh SVHC

Lead 7439-92-1
