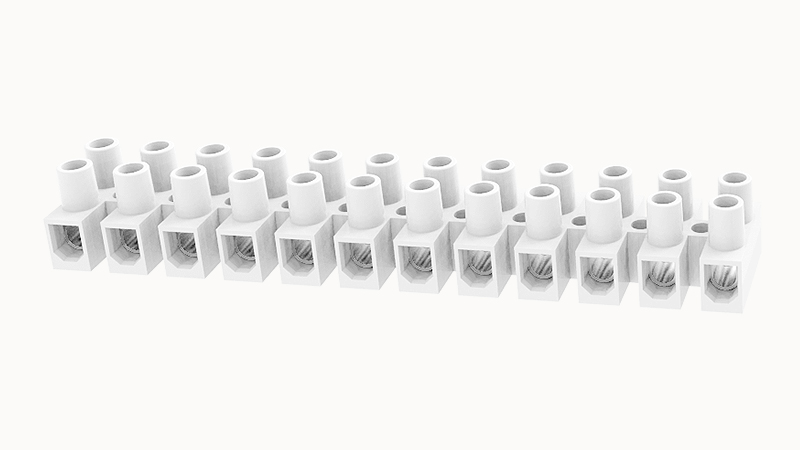

DEGSON DG10HS-1.2

Conductor cross section solid

1.0~6mm²

Conductor cross section flexible

1.0~6.0mm²

AWG

18~10AWG

Torque

0.5N.m

Strip length

9mm

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

30A

Rated current (D)

10A

Rated current(III/2)

450V

Rated power frequency voltage(1min)

2KV

Type of installation

panel

Screwdriver

Slotted screwdriver

Number of potentials

12

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

steel

Contact point metal surface

Galvanized

Insulation Materials

PA66

Test Specification

UL1059/IEC60998

Ambient temperature (operation)

-40℃~105℃

螺距

10mm

screw thread

M3

Connection method

Screw connection

Flammability rating

UL94V-2
