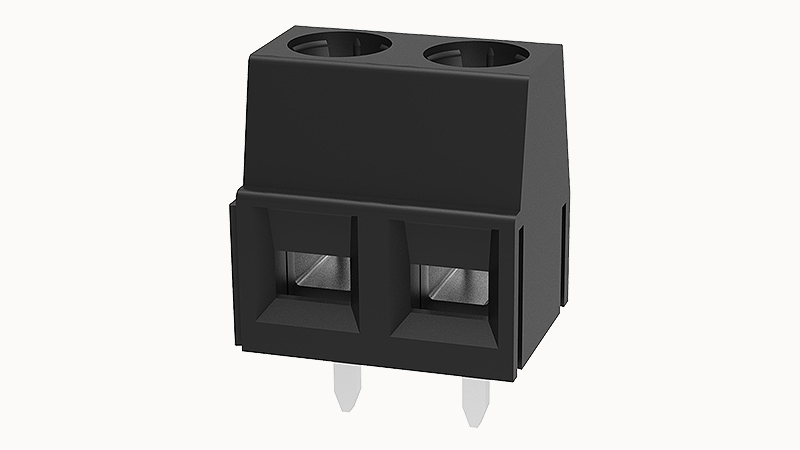

DEGSON DG127-THR-5.0-02P

Conductor cross section solid

0.2~1.5mm²

Conductor cross section flexible

0.2~1.5mm²

AWG

30~14AWG

Strip length

6mm

Rated voltage (B)

300V

Rated current (B)

12A

Rated current(III/3)

200V

Rated current(III/2)

320V

Rated current(II/2)

320V

Rated surge voltage(III/3)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(II/2)

4KV

Connection direction

0°

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Screwdriver

Slotted screwdriver

Number of potentials

2

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Insulation Materials

High temperature resistant materials

Insulating material group

Ⅰ

Test Specification

IEC60947/UL1059

Ambient temperature (operation)

-40℃~130℃

Number of rows

1

螺距

5mm

Rated current

13.5A

screw thread

M3

Connection method

Screw connection

Rated voltage

320V

过程

Reflow soldering/wave soldering/manual soldering

Flammability rating

UL94V-0
