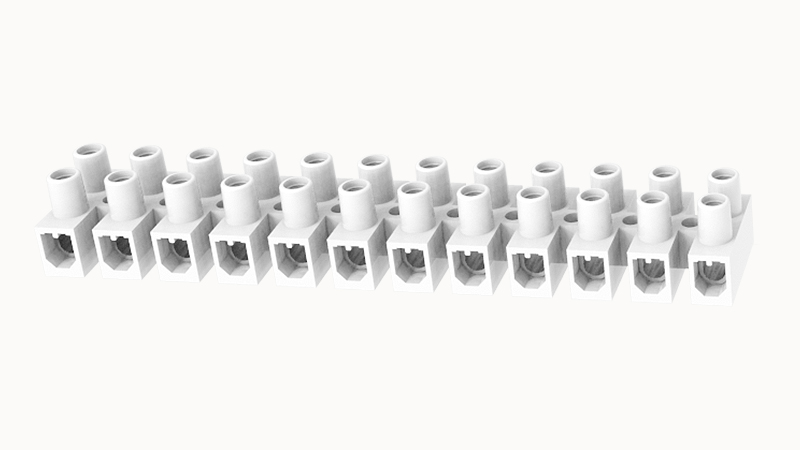

DEGSON DG12HS-1.2

Conductor cross section solid

1.5~10mm²

Conductor cross section flexible

1.5~10mm²

AWG

14~8AWG

Torque

0.8N.m

Strip length

9mm

Rated voltage (B)

300V

Rated voltage (C)

150V

Rated voltage (D)

300V

Rated current (B)

50A

Rated current (D)

10A

Rated current (C)

50A

Rated current(III/2)

750V

Rated power frequency voltage(1min)

3KV

Type of installation

panel

Screwdriver

Slotted screwdriver

Number of potentials

12

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

steel

Contact point metal surface

Galvanized

Insulation Materials

PA66

Test Specification

UL1059/IEC60998

Ambient temperature (operation)

-40℃~105℃

螺距

11.5mm

screw thread

M3.5

Connection method

Screw connection

Flammability rating

UL94V-2
