DEGSON DG137TM-15.0-02P
- 收藏
- 对比

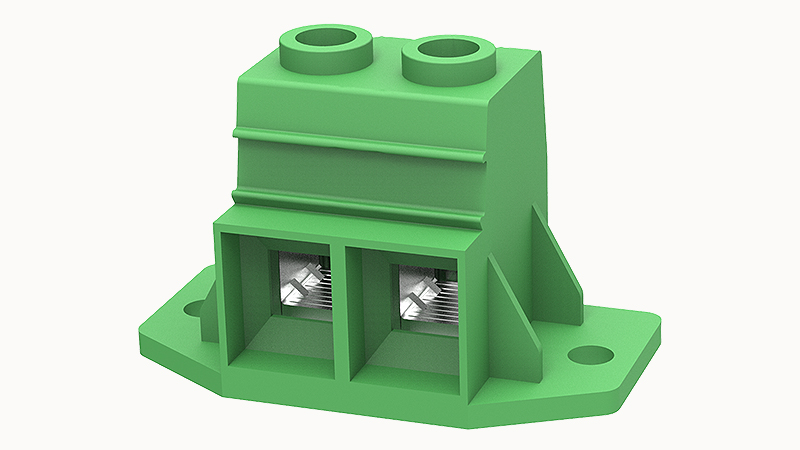

DG137TM-15.0-02P
637-DG137TM-15.0-02P
端子块 - 配件
--
大陆
立即发货
PCB terminal blocks,Rated current: 115A,Rated voltage （III/2）1000V,Cross section:4-35mm²,pitch:15.0mm,connector method:Screw connector with tension sleeve,Color:green,Contact surface :Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DG137TM-15.0-02P详情
DEGSON DG137TM-15.0-02P重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Conductor cross section solid
4.0~35mm²
Conductor cross section flexible
4.0~35mm²
AWG
20~2AWG
Torque
2N.m
Strip length
18mm
Rated voltage (B)
600V
Rated voltage (C)
600V
Rated voltage (D)
600V
Rated current (B)
115A
Rated current (D)
5A
Rated current (C)
115A
Rated current(III/2)
1000V
Rated power frequency voltage(1min)
3.5KV
Connection direction
0°
Type of installation
PCB welding
Pin arrangement
Double-row in a straight line
Screwdriver
slotted-phillips screwdriver
Number of potentials
2
Pluggable or not
no
Environmental items
Compliant with REACH/RoHS
Contact Materials
copper
Contact point metal surface
tin-plated
Insulation Materials
PA66
Insulating material group
Ⅰ
Test Specification
UL1059/IEC60998
Ambient temperature (operation)
-40℃~105℃
Number of rows
1
螺距
15mm
Rated current
115A
screw thread
M5
Connection method
Screw connection
Rated voltage
1000V
过程
Wave soldering/manual soldering
Flammability rating
UL94V-0
