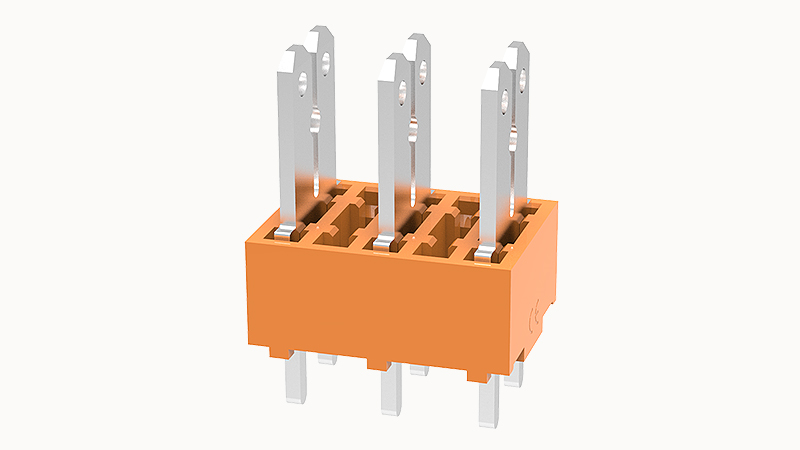

DEGSON DG140V-5.0-03P
- 收藏
- 对比
DG140V-5.0-03P
637-DG140V-5.0-03P
端子块 - 配件
--
大陆
立即发货
PCB terminal blocks,Rated current:24A,Rated voltage （III/2）630V,Cross section:2.5mm²,pitch:5.0mm,connector method:Quick plug connector,Color:Orange ,Contact surface :Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DG140V-5.0-03P详情
DEGSON DG140V-5.0-03P重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Ambient temperature (operation)
-40℃~85℃
Test Specification
IEC60998
Insulating material group
Ⅰ
Insulation Materials
PA66
Contact point metal surface
tin-plated
Contact Materials
Copper alloy
Environmental items
Compliant with REACH/RoHS
Pluggable or not
no
Number of potentials
3
Pin arrangement
Double-row in a straight line
Type of installation
PCB welding
Connection direction
90°
Rated power frequency voltage(1min)
3KV
Rated current(III/2)
630V
Rated current (D)
10A
Rated current (B)
15A
Rated voltage (D)
300V
Rated voltage (B)
300V
AWG
26~14AWG
Conductor cross section flexible
0.5~2.5mm²
Conductor cross section solid
0.5~2.5mm²
Number of rows
1
螺距
5mm
Rated current
24A
Connection method
Quick connection
Rated voltage
630V
过程
Wave soldering/manual soldering
Flammability rating
UL94V-2
