DEGSON DG15HS-1.2
- 收藏
- 对比
DG15HS-1.2
637-DG15HS-1.2
端子块 - 配件
--
大陆
立即发货

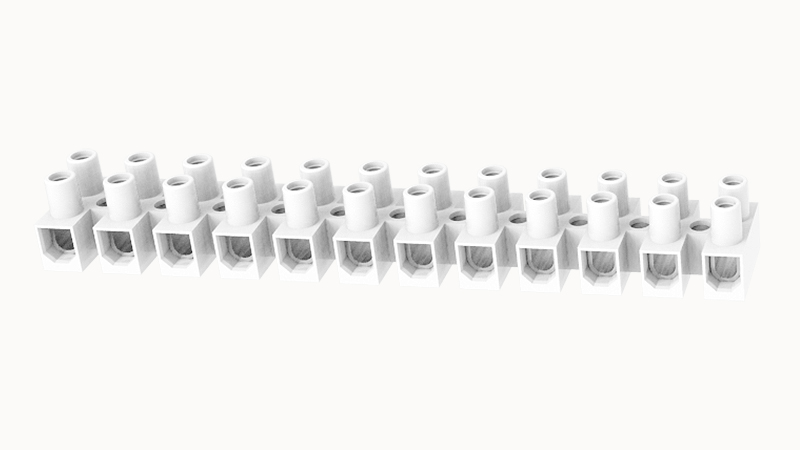

Feed through terminal blocks,Rated current:76A.Rated voltage （III/2）:750V,pitch:15.0mm,Color:natural,Contact surface :Zn
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DG15HS-1.2详情
DEGSON DG15HS-1.2重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Conductor cross section solid
2.5~16mm²
Conductor cross section flexible
2.5~16mm²
AWG
12~10AWG
Torque
1.2N.m
Strip length
10mm
Rated voltage (B)
300V
Rated voltage (D)
300V
Rated current (B)
30A
Rated current (D)
10A
Rated current(III/2)
750V
Rated power frequency voltage(1min)
3KV
Type of installation
panel
Screwdriver
Slotted screwdriver
Number of potentials
12
Pluggable or not
no
Environmental items
Compliant with REACH/RoHS
Contact Materials
steel
Contact point metal surface
Galvanized
Insulation Materials
PA66
Test Specification
UL1059/IEC60998
Ambient temperature (operation)
-40℃~105℃
螺距
15mm
screw thread
M4
Connection method
Screw connection
Flammability rating
UL94V-2
