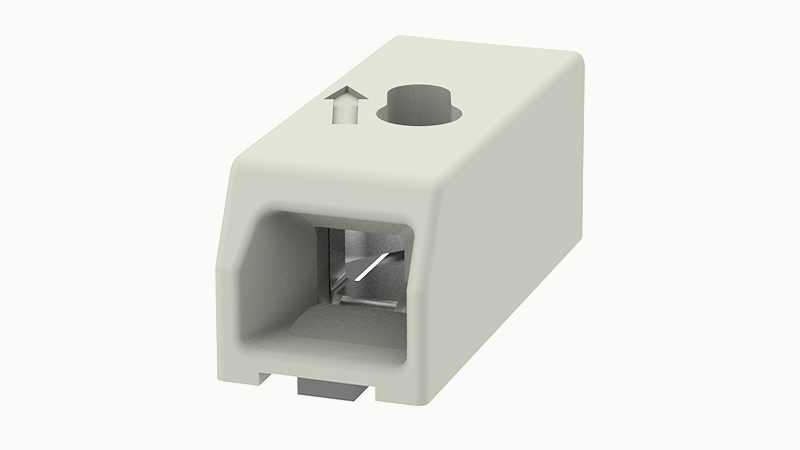

DEGSON DG2001-3.0-01P

Ambient temperature (operation)

-40℃~130℃

Test Specification

IEC60947/UL1977

Insulating material group

Ⅲa

Insulation Materials

High temperature resistant materials

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

1

Pin arrangement

Double-row in a straight line

Type of installation

PCB welding

Connection direction

0°

Rated surge voltage(II/2)

2.5KV

Rated surge voltage(III/2)

2.5KV

Rated surge voltage(III/3)

2.5KV

Rated current(II/2)

160V

Rated current(III/2)

160V

Rated current(III/3)

32V

Rated current (B)

3A

Rated voltage (B)

300V

Strip length

6mm

AWG

26~22AWG

Conductor cross section solid

0.14~0.34mm²

Number of rows

1

螺距

3mm

Rated current

3A

Connection method

Push-in spring connection

Rated voltage

160V

过程

Reflow soldering/wave soldering/manual soldering

Flammability rating

UL94V-0
