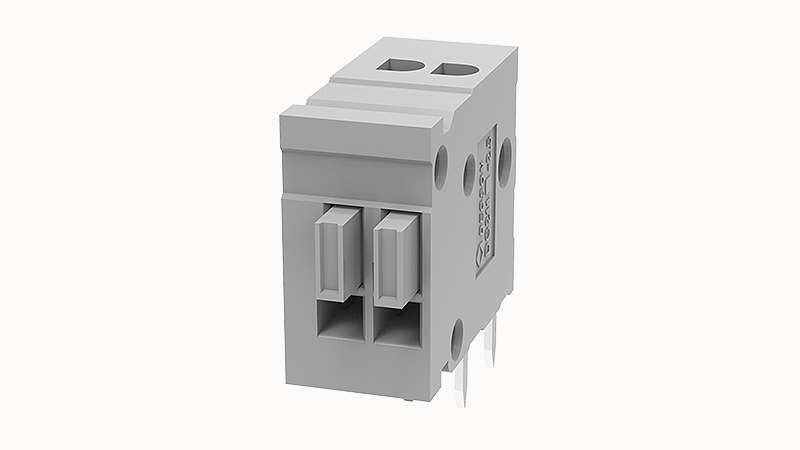

DEGSON DG211R-2.5-02P

Conductor cross section solid

0.2~0.5mm²

Conductor cross section flexible

0.2~0.5mm²

AWG

28~20AWG

Strip length

9mm

Rated voltage (B)

150V

Rated current (B)

5A

Rated current(III/3)

160V

Rated current(III/2)

160V

Rated current(II/2)

320V

Rated surge voltage(III/3)

2.5KV

Rated surge voltage(III/2)

2.5KV

Rated surge voltage(II/2)

2.5KV

Connection direction

0°

Type of installation

PCB welding

Pin arrangement

Double-row in a straight line

Number of potentials

2

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC60947/UL1059

Ambient temperature (operation)

-40℃~105℃

Number of rows

1

螺距

2.5mm

Rated current

3A

Connection method

Push-in spring connection

Rated voltage

160V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
