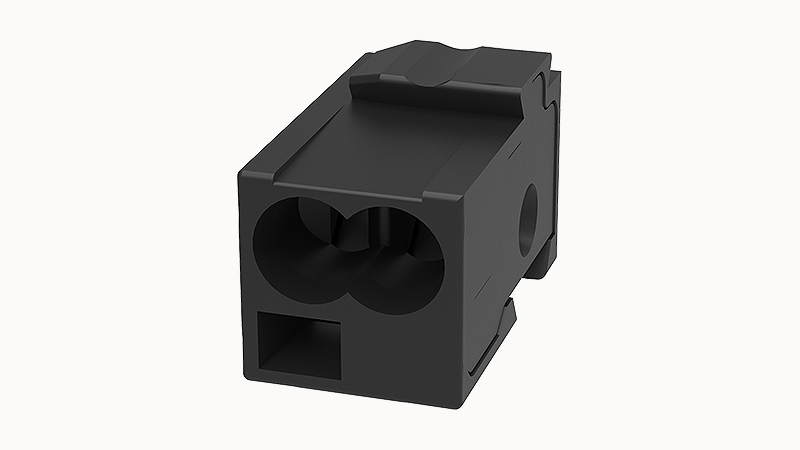

DEGSON DG220B-2.1-02P

Conductor cross section solid

0.5~1.0mm²

Ambient temperature (operation)

-40℃~105℃

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

2

Connection direction

0°

Rated surge voltage(II/2)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(III/3)

4KV

Rated current(II/2)

630V

Rated current(III/2)

320V

Rated current(III/3)

250V

Rated current (D)

7A

Rated current (B)

7A

Rated voltage (D)

150V

Rated voltage (B)

150V

Strip length

6mm

Number of rows

1

螺距

2.1mm

Rated current

6A

Connection method

Push-in spring connection

Rated voltage

320V

Flammability rating

UL94V-0
