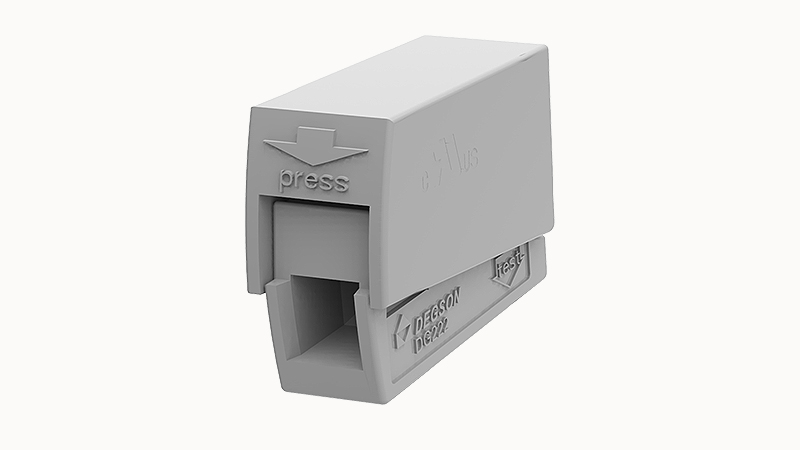

DEGSON DG222-8.0-01P

Conductor cross section solid

0.2~2.5mm²

Conductor cross section flexible

0.2~2.5mm²

Strip length

10mm

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

22A

Rated current (D)

10A

Rated current(III/2)

450V

Rated power frequency voltage(1min)

2.5KV

Number of potentials

1

Pluggable or not

no

Insulating material group

Ⅰ

Test Specification

UL1059/IEC60998

Ambient temperature (operation)

-40℃~85℃

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Insulation Materials

PA66

Number of rows

1

螺距

8mm

Connection method

Push-in spring connection

Flammability rating

UL94V-0
