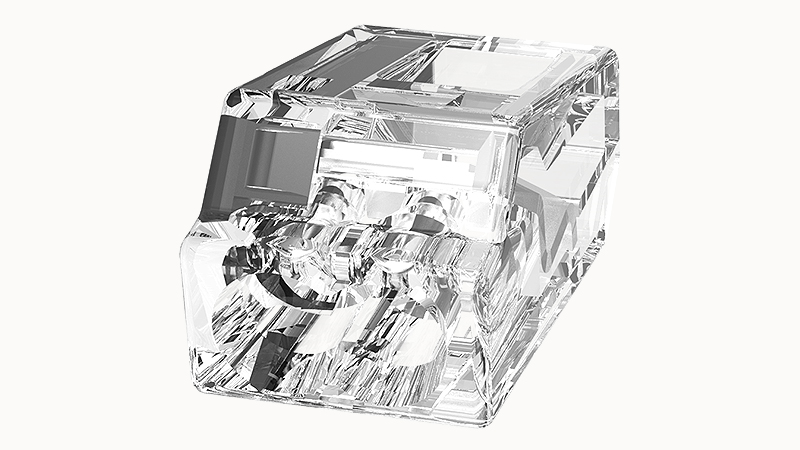

DEGSON DG228-3.5-02P

Conductor cross section solid

0.5~2.5mm²

Conductor cross section flexible

0.5~2.5mm²

AWG

22~14AWG

Strip length

10mm

Rated voltage (B)

600V

Rated current (B)

15A

Rated current(III/2)

450V

Rated power frequency voltage(1min)

2.5KV

Number of potentials

2

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

steel

Insulation Materials

PC

Insulating material group

Ⅲa

Test Specification

UL1059/IEC60998

Ambient temperature (operation)

-40℃~85℃

Number of rows

1

螺距

5mm

Connection method

Push-in spring connection

Flammability rating

UL94V-2
