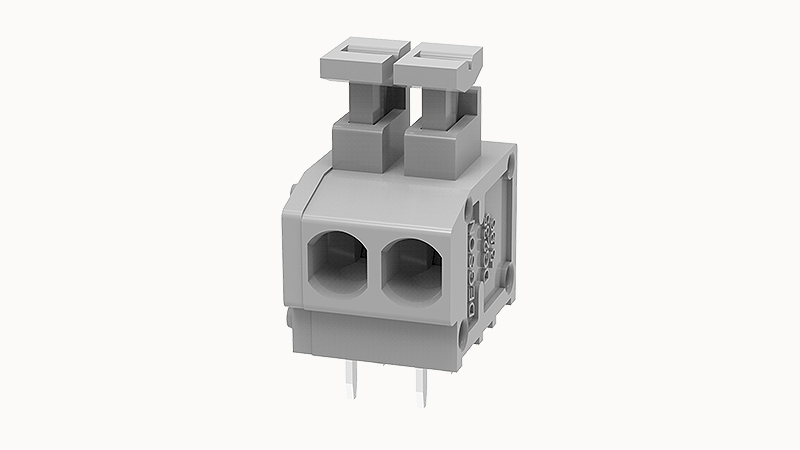

DEGSON DG235-3.96-02P

Ambient temperature (operation)

-40℃~105℃

Test Specification

UL1059/IEC60998

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

2

Pin arrangement

Double-row in a straight line

Type of installation

PCB welding

Connection direction

0°

Rated surge voltage(III/2)

2KV

Rated current(III/2)

250V

Rated current (C)

5A

Rated current (D)

5A

Rated current (B)

5A

Rated voltage (D)

300V

Rated voltage (C)

150V

Rated voltage (B)

300V

Strip length

10mm

AWG

20~18AWG

Conductor cross section flexible

0.5~1.5mm²

Conductor cross section solid

0.5~1.5mm²

Number of rows

1

螺距

3.96mm

Rated current

10A

Connection method

Push-in spring connection

Rated voltage

250V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
