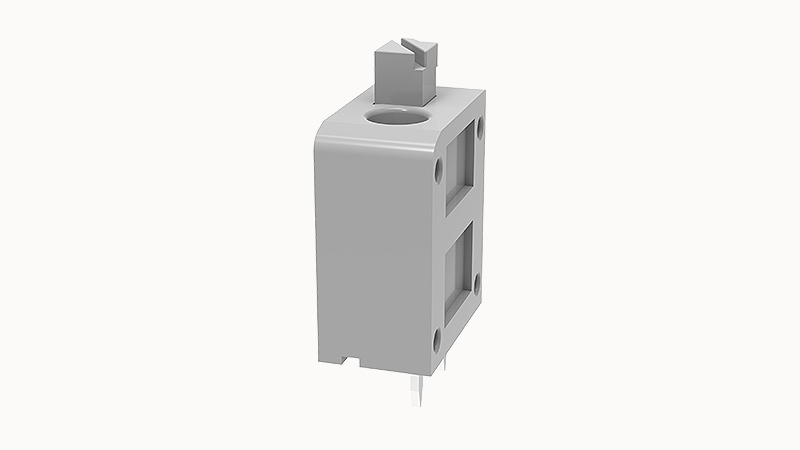

DEGSON DG236-5.0-01P

Conductor cross section solid

0.2~1.5mm²

Conductor cross section flexible

0.2~1.5mm²

AWG

20~16AWG

Strip length

8mm

Rated voltage (B)

300V

Rated voltage (C)

300V

Rated voltage (D)

300V

Rated current (B)

8A

Rated current (D)

8A

Rated current (C)

8A

Rated current(III/2)

400V

Ambient temperature (operation)

-40℃~105℃

Test Specification

UL1059/IEC60998

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

1

Pin arrangement

Double-row in a straight line

Type of installation

PCB welding

Connection direction

90°

Rated power frequency voltage(1min)

2.5KV

Number of rows

1

螺距

5mm

Rated current

10A

Connection method

Push-in spring connection

Rated voltage

400V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
