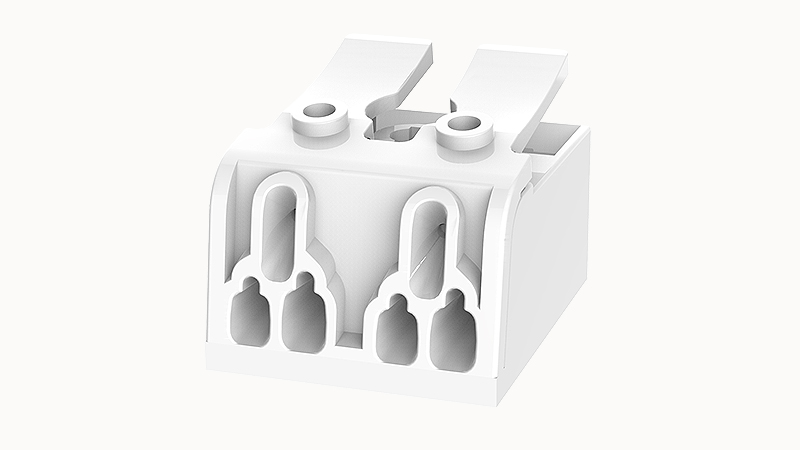

DEGSON DG238-10.0-02P
- 收藏
- 对比
DG238-10.0-02P
637-DG238-10.0-02P
端子块 - 配件
--
大陆
立即发货
PCB spring terminal blocks,Rated current:24A.Rated voltage （III/2）:450V,pitch:10.0mm,Color:White,Contact surface :Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DG238-10.0-02P详情
DEGSON DG238-10.0-02P重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
AWG
22~14AWG
Strip length
9mm
Rated voltage (B)
600V
Rated current (B)
20A
Rated current(III/2)
450V
Rated power frequency voltage(1min)
2.5KV
Number of potentials
2
Pluggable or not
no
Environmental items
Compliant with REACH/RoHS
Contact Materials
Copper alloy
Contact point metal surface
Nickel plating
Insulation Materials
PA66
Insulating material group
Ⅰ
Test Specification
UL1059/IEC60998
Ambient temperature (operation)
-40℃~105℃
Number of rows
1
螺距
10mm
Connection method
Push-in spring connection
Flammability rating
UL94V-2
