DEGSON DG240-2.54-01P
- 收藏
- 对比
DG240-2.54-01P
637-DG240-2.54-01P
端子块 - 配件
--
大陆
立即发货

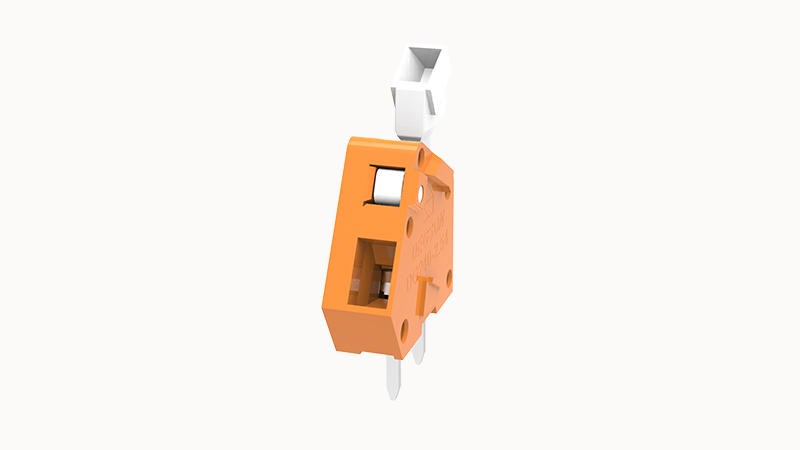

PCB spring terminal blocks,Rated current:6A.Rated voltage （III/2）:130V,pitch:2.54mm,Color:Orange ,Contact surface :Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DG240-2.54-01P详情
DEGSON DG240-2.54-01P重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Conductor cross section solid
0.2~0.5mm²
Conductor cross section flexible
0.2~0.5mm²
AWG
28~20AWG
Strip length
6mm
Rated voltage (B)
150V
Rated voltage (C)
150V
Rated voltage (D)
150V
Rated current (B)
4A
Rated current (D)
4A
Rated current (C)
4A
Rated current(III/2)
130V
Rated power frequency voltage(1min)
1.25KV
Connection direction
45°
Type of installation
PCB welding
Pin arrangement
Double-row in a straight line
Number of potentials
1
Pluggable or not
no
Environmental items
Compliant with REACH/RoHS
Contact Materials
Copper alloy
Contact point metal surface
tin-plated
Insulation Materials
PA66
Insulating material group
Ⅰ
Test Specification
UL1059/IEC60998
Ambient temperature (operation)
-40℃~105℃
Number of rows
1
螺距
2.54mm
Rated current
6A
Connection method
spring-cage connection
Rated voltage
130V
过程
Wave soldering/manual soldering
Flammability rating
UL94V-0
