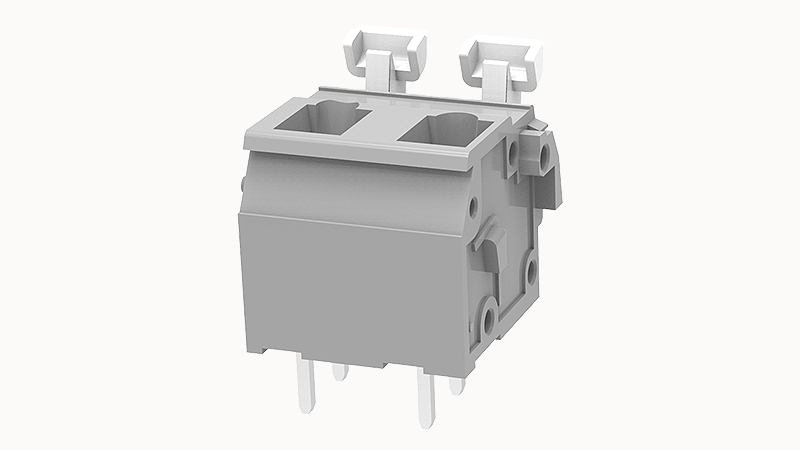

DEGSON DG242V-7.62-02P

Rated surge voltage(III/3)

6KV

Rated surge voltage(III/2)

6KV

Rated surge voltage(II/2)

6KV

Connection direction

90°

Type of installation

PCB welding

Pin arrangement

Double-row in a straight line

Number of potentials

2

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

UL1059/IEC60998

Ambient temperature (operation)

-40℃~105℃

Rated current(II/2)

1000V

Rated current(III/2)

750V

Rated current(III/3)

450V

Rated current (D)

10A

Rated current (B)

15A

Rated voltage (D)

300V

Rated voltage (B)

300V

Strip length

6mm

AWG

28~12AWG

Conductor cross section flexible

0.2~2.5mm²

Conductor cross section solid

0.2~2.5mm²

Number of rows

1

螺距

7.62mm

Rated current

17A

Connection method

spring-cage connection

Rated voltage

750V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
