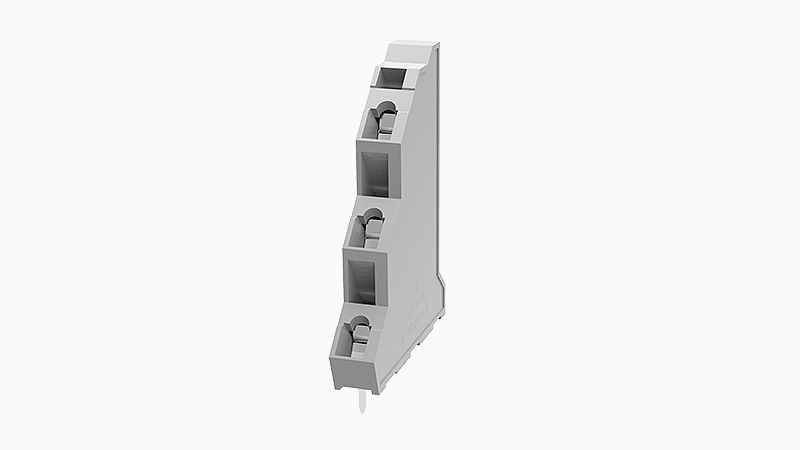

DEGSON DG245H3-5.0-03P

Rated current (D)

10A

Rated current (B)

10A

Rated voltage (D)

300V

Rated voltage (B)

300V

Strip length

6mm

AWG

28~12AWG

Conductor cross section flexible

0.2~2.5mm²

Conductor cross section solid

0.2~2.5mm²

Rated current(III/2)

450V

Rated power frequency voltage(1min)

2.5KV

Connection direction

45°

Type of installation

PCB welding

Pin arrangement

Three rows in a straight line

Number of potentials

3

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

UL1059/IEC60998

Ambient temperature (operation)

-40℃~105℃

Number of rows

3

螺距

5mm

Rated current

18A

Connection method

spring-cage connection

Rated voltage

450V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
