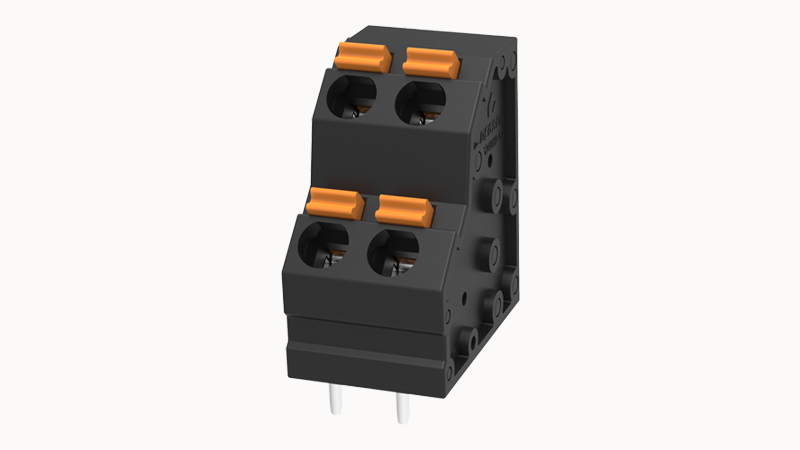

DEGSON DG248H2-5.0-04P

Conductor cross section solid

0.2~1.5mm²

Conductor cross section flexible

0.2~1.5mm²

AWG

28~16AWG

Strip length

10mm

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

10A

Rated current (D)

10A

Rated current(III/3)

320V

Ambient temperature (operation)

-40℃~105℃

Test Specification

IEC60947/UL1059

Shell color

Black

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

4

Pin arrangement

Double-row in a straight line

Type of installation

PCB welding

Connection direction

45°

Rated surge voltage(II/2)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(III/3)

4KV

Rated current(II/2)

630V

Rated current(III/2)

320V

Number of rows

2

螺距

5mm

Rated current

17.5A

Connection method

Push-in spring connection

Rated voltage

320V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
