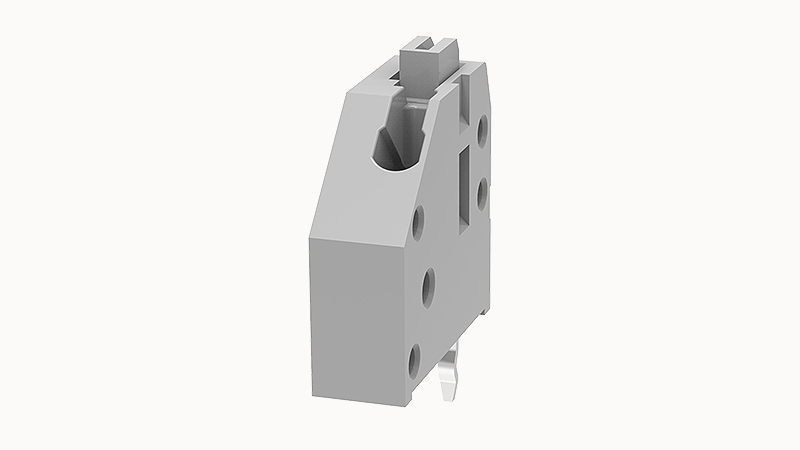

DEGSON DG250-2.5-01P

Rated surge voltage(III/2)

2KV

Connection direction

45°

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Conductor cross section solid

0.2~0.5mm²

Conductor cross section flexible

0.2~0.5mm²

AWG

24~20AWG

Strip length

9mm

Rated voltage (B)

300V

Rated voltage (C)

300V

Rated voltage (D)

300V

Rated current (B)

2A

Rated current (D)

2A

Rated current (C)

2A

Rated current(III/2)

250V

Number of potentials

1

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

UL1059/IEC60998

Ambient temperature (operation)

-40℃~105℃

Number of rows

1

螺距

2.5mm

Rated current

2A

Connection method

Push-in spring connection

Rated voltage

250V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
