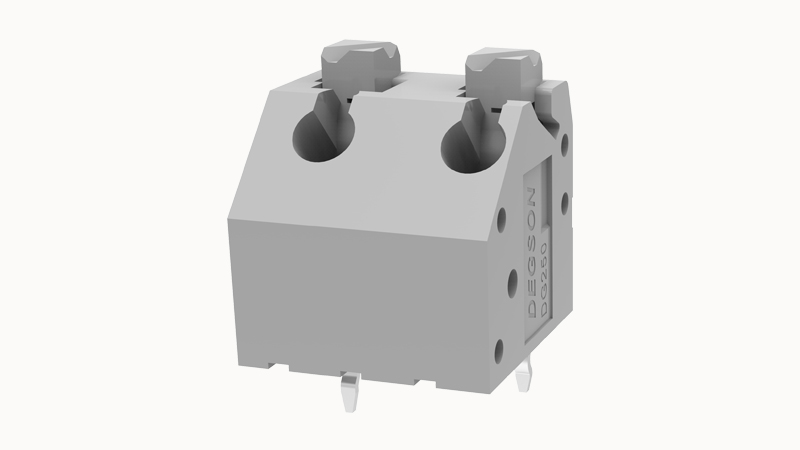

DEGSON DG250-7.0 reverse pin pattern-02P

Conductor cross section solid

0.2~1.5mm²

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC60947/UL1059

Ambient temperature (operation)

-40℃~105℃

Pluggable or not

no

Number of potentials

2

Pin arrangement

Double-row of misalignment

Type of installation

PCB welding

Connection direction

45°

Rated surge voltage(II/2)

6KV

Rated surge voltage(III/2)

6KV

Rated surge voltage(III/3)

6KV

Rated current(II/2)

1000V

Rated current(III/2)

630V

Rated current(III/3)

500V

Rated current (C)

8A

Rated current (D)

8A

Rated current (B)

8A

Rated voltage (D)

600V

Rated voltage (C)

300V

Rated voltage (B)

300V

Strip length

9mm

AWG

22~18AWG

Conductor cross section flexible

0.2~1.5mm²

Number of rows

1

螺距

7mm

Rated current

10A

Connection method

Push-in spring connection

Rated voltage

630V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
