DEGSON DG252
- 收藏
- 对比
DG252
637-DG252
端子块 - 配件
--
大陆
立即发货

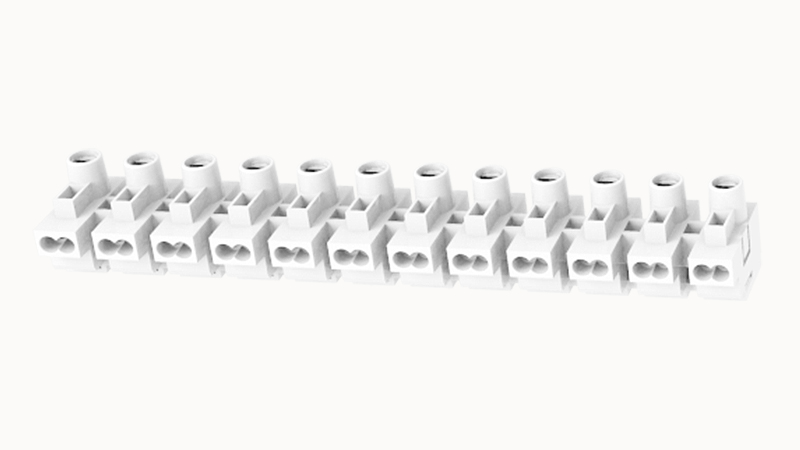

Feed through terminal blocks,Rated current:17.5A.Rated voltage （III/2）:450V,pitch:10.0mm,Color:White,Contact surface :Zn
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DG252详情
DEGSON DG252重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Conductor cross section solid
0.5~1.5mm²
AWG
22~16AWG
Torque
0.8N.m
Strip length
7mm
Rated voltage (B)
300V
Rated current (B)
10A
Rated current(III/2)
450V
Rated power frequency voltage(1min)
2.5KV
Type of installation
panel
Screwdriver
Slotted screwdriver
Number of potentials
12
Pluggable or not
no
Environmental items
Compliant with REACH/RoHS
Contact Materials
steel
Contact point metal surface
Galvanized
Insulation Materials
PA66
Test Specification
UL1059/IEC60998
Ambient temperature (operation)
-40℃~105℃
螺距
10mm
screw thread
M3.5
Connection method
Screw connection
Flammability rating
UL94V-2
