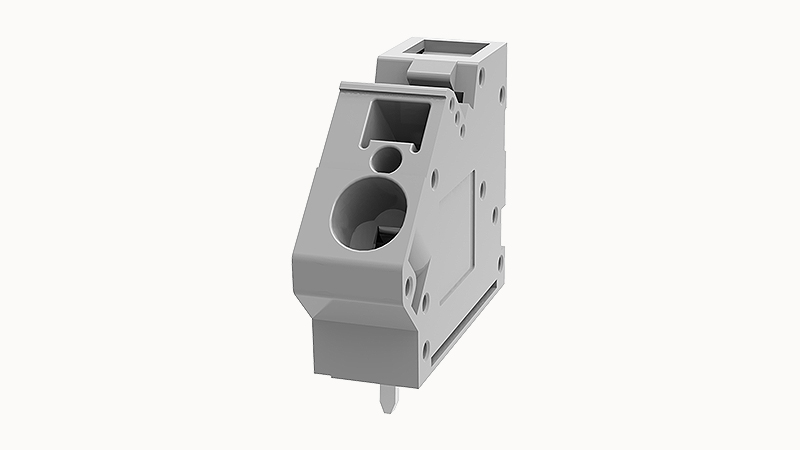

DEGSON DG260-7.5-01P

Conductor cross section solid

0.2~4mm²

Conductor cross section flexible

0.2~4.0mm²

AWG

24~10AWG

Strip length

11mm

Rated voltage (B)

300V

Rated current (B)

30A

Rated current(III/3)

500V

Rated current(III/2)

630V

Rated current(II/2)

1000V

Rated surge voltage(III/3)

6KV

Rated surge voltage(III/2)

6KV

Rated surge voltage(II/2)

6KV

Connection direction

45°

Type of installation

PCB welding

Pin arrangement

Double-row in a straight line

Number of potentials

1

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC60947/UL1059

Ambient temperature (operation)

-40℃~105℃

Number of rows

1

螺距

7.5mm

Rated current

32A

Connection method

spring-cage connection

Rated voltage

630V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
